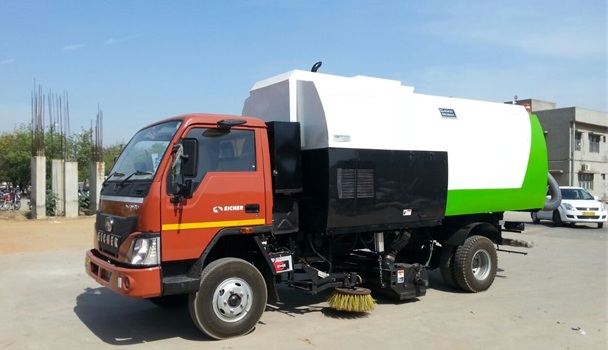

LCV 400 is to efficiently clean large flat paved areas like street, markets and commercial areas, industries, residential blocks etc.
With help of rotating brushes & suction system on the left or right side the dirt is to be lifted off the ground and sucked through the
duct through the high-pressure suction system and brushes. It should not return any dust to the environment through proper use of dust
suppression system. The machine have heavy-duty diesel operated powerful auxiliary engine for rotating the vacuum blower and operating
the various hydraulic systems of the unit.

Excellent performance high dust lifting capacity does not produce dust while cleaning with the help of water sprinkler system.

can work wet and dry roads
22500sqm.
0 to 8 km.hr cleaning speed according to dust condition
One sweeping path minimum 7feet MAXSWEEP® 2850 MM (9 feet optional)
Debris hopper capacity 4 cu.m
High-Pressure hand spray gun (optional)
Water tank capacity 300 liters (optional)
CCD cameras, at the rear of the machine (optional)

Technical Specifications of

SUITABLE TRUCK CAB CHASSIS
TATA, ASHOK LEYLAND, EICHER, BHARAT BENZ
SWEEPING CAPACITY
With One Horizontal Brush 1900 MM.
With One Horizontal and Two Side Brushes 2850 MM.
Sweeping Capacity Per/hr. up to 22500 Sq. Mt.
DEBRIS HOPPER CAPACITY
Volumetric Capacity 4 CU MT
SWEEPING SPEED
Sweeping speed 1 -8 km/hr. Depending upon road and dust conditions
CONSTRUCTION
Machine incorporated of Debris hopper and Engine compartment mounted on heavy duty Sub chassis further mounted on the base of suitable truck chassis
DEBRIS HOPPER
Made of reinforced mild steel sheet for lightweight and strong structure heaving volumetric Capacity of 4 CU MT. Hopper unloading/ tipping by Hydraulic cylinder through the rear door
ENGINE COMPARTMENT
Soundproofed engine compartment with anti-vibration dampers heaving Engine, Vacuum Fan, All hydraulics and Electrical systems for different operations of machine ensuring lower noise Levels and easy accessibility to all components for servicing
AUXILIARY ENGINE
Heavy Duty Industrial water cooled Diesel engine Max B.H.P 76 with all controls on operator panel Inside operator Cabin, Make: Kirloskar / Leyland
SUCTION FAN
High Efficiency dynamically balanced multi-bladed Vacuum Fan driven by Auxiliary engine Through V-Belts for ensuring sufficient vacuum power for the sweeping system and lower noise levels
SWEEPING HEAD
Sweeping head with suction nozzles and sweeping brushes mounted on heavy duty caster wheels Fixed on the free-floating suspension system for ensuring uniform sweeping along the width of machine On all kind of smooth and bumpy roads
SWEEPING BRUSHES
One horizontal roller brush with special bristles driven by hydraulic motor 2200 MM (long) Two side rotary brushes with special bristles driven by hydraulic motor 500 MM (Diameter)
HYDRAULIC SYSTEM
Purpose to power sweeping brushes and all hydraulic actuators
Hydraulic pump driven by Auxiliary engine with Reservoir tank capacity
60 Liters High-efficiency filtration system and circuit protection valves for longer life Electro solenoid valve for actuating different functions from operator panel inside cabin
